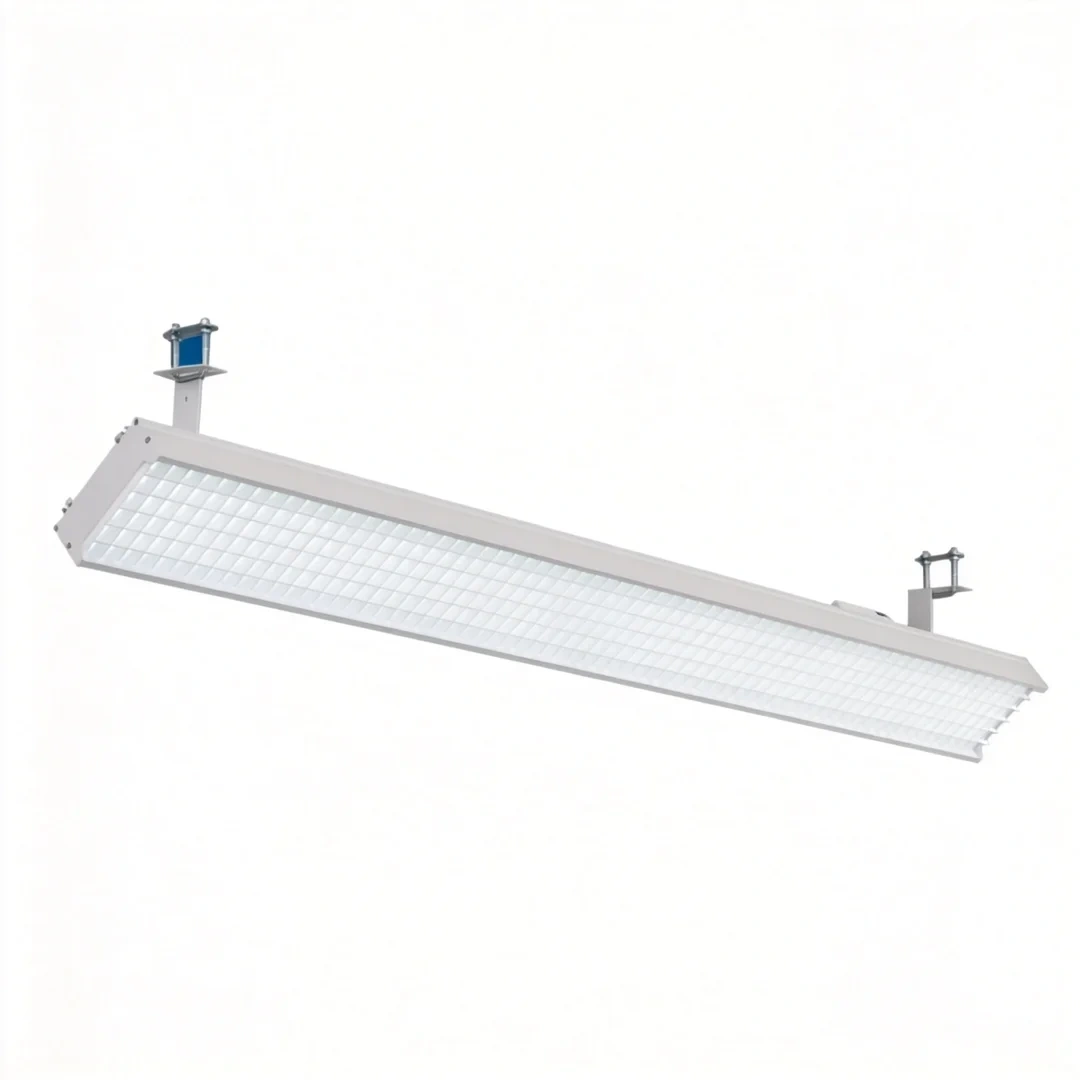

The Specialized Lighting for Badminton Courts is an indoor sports lighting fixture designed for badminton halls and other indoor sports facilities. The product adopts a deep-baffle anti-glare structure with a triple anti-glare design to improve visual comfort during sports activities.
The fixture supports multiple installation methods, including side mounting, suspended installation, single lamp installation, and double lamp combination. It is suitable for badminton clubs, training centers, school gymnasiums, and multi-purpose indoor sports spaces.
The lighting system provides 80W and 100W power options, with a default 6000K color temperature and customizable color temperature options according to project requirements.
| Item | Specification |
|---|---|
| Product Type | Specialized lighting for badminton courts |
| Application | Badminton halls and indoor sports facilities |
| Installation Methods | Side-mounted, suspended installation, single lamp, double combination |
| Power Options | 80W / 100W |
| Light Output (80W) | 7900 lm |
| Light Output (100W) | 9500 lm |
| Input Voltage | AC200-240V |
| General Color Rendering Index | >80Ra |
| Color Tolerance | <5 |
| R9 Value | >0 |
| Color Temperature | 6000K standard, customizable |
| Optical Design | Triple anti-glare design |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Protection Rating | IP20 |
| Electric Shock Protection | Class I |
| Flicker Performance | No visible flicker design |
The fixture uses a deep-baffle design combined with a triple anti-glare structure. This optical design helps control direct glare and provides more comfortable lighting conditions for indoor badminton environments.
The product supports different installation configurations, including side-mounted installation, suspended installation, single fixture installation, and double fixture combinations. This allows adaptation to different indoor hall structures.
The lighting fixture provides a general color rendering index above 80Ra with color tolerance below 5. The R9 value is positive, supporting clear color presentation in sports environments.
The product adopts a no-visible-flicker design to provide stable lighting performance for indoor sports applications.
The fixture operates at AC200-240V input voltage with power efficiency above 90% and power factor above 0.95.
The product is available in 80W and 100W versions. The 80W model provides 7900 lm light output, while the 100W model provides 9500 lm light output.
Designed for indoor badminton courts requiring specialized sports lighting fixtures with glare-control features.
Suitable for commercial badminton facilities and training venues.
Can be used in school indoor sports halls and activity spaces.
Suitable for indoor recreational sports areas requiring stable lighting solutions.
Applicable for indoor facilities where flexible installation and sports-oriented lighting are required.
Can be used as part of indoor sports lighting replacement or improvement projects.
This product is designed for badminton halls and indoor sports facilities. It uses a deep-baffle anti-glare structure for sports lighting applications.
The fixture supports side-mounted installation, suspended installation, single lamp installation, and double lamp combination installation.
The product is available in 80W and 100W versions. The 80W model provides 7900 lm light output, and the 100W model provides 9500 lm light output.
Yes. The fixture uses a triple anti-glare design with a deep-baffle structure.
The standard color temperature is 6000K. Customized color temperature options are available according to project requirements.
The product uses a no-visible-flicker design for stable indoor sports lighting performance.
The product has an IP20 protection rating and Class I electric shock protection.
